Type and installation of stainless steel cam followers bearing.

Types of stainless steel cam followers bearings:

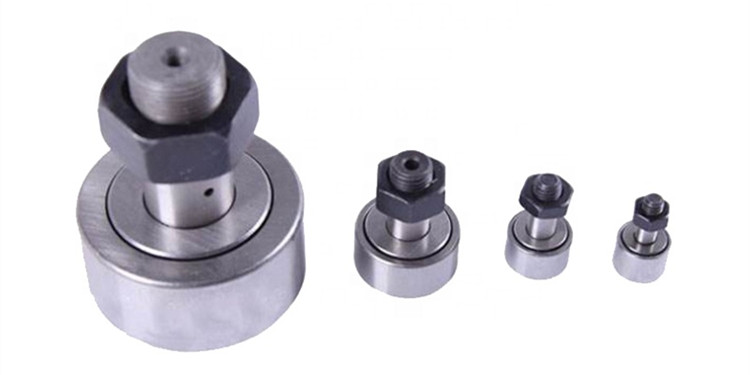

Standard stainless steel cam followers bearings CF type is the basic form of cam driven bearings. The diameter of the rod end ranges from a minimum of 3mm to a maximum of 30mm, with a wide range of sizes and a wide range of uses.

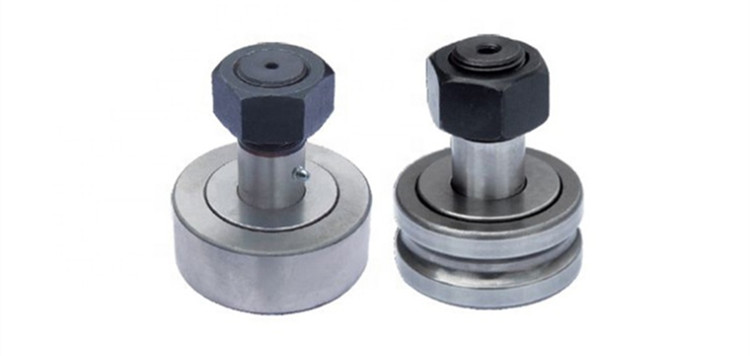

Stainless steel cam followers with hexagon holes can be filled with lubricant from the top of the rod end
Stainless steel cam followers bearings have high rigidity and high precision as driven bearings for cam mechanisms and driven bearings for linear motion, and stainless steel cam followers bearings are widely used in machine tools, industrial manipulators, electronic component devices, and OA equipment.

Stainless steel cam followers bearing installation:

1. After making the center line of the mounting hole at right angle to the movement direction of stainless steel cam followers bearing, the side of the mounting hole is correctly aligned with the dimension in the dimension table, and then fixed with the girdle. Do not directly hit the flange of the stainless steel cam followers bearing with a hammer during installation, otherwise it may cause poor rotation or breakage.

2. The mark on the side of the rod end flange indicates the position of the oil hole on the track surface S. When installing, be careful not to install the oil hole in the load domain. Oil holes located in the load domain will shorten the life of the stainless steel cam followers bearing. The vertical hole in the center of the rod end is used for refueling or stopping.

3. When tightening the nut, the maximum tightening torque range shown in the size table should not be exceeded. Excessive tightening torque may sometimes break the threaded portion of the rod end. In addition, if used under some working conditions that may loosen the nut, use a lock nut, spring washer, or special locknut.

4. The position S of the outer ring of the eccentric stainless steel cam followers bearing and the stainless steel cam followers bearing with eccentric bushing can be adjusted by rotating the screwdriver at the top of the rod end or the hexagonal hole to rotate it. The rod end can be fastened with a spring washer or the like. The maximum tightening torque range shown in the dimension table should not be exceeded when tightening the nut.

When carrying an impact load and it is necessary to maintain the eccentric adjustment correctly. It is recommended to use a method of opening the shaft or eccentric shaft sleeve through the shaft hole and fixing it with a positioning pin. However, the rod ends with a diameter less than 8 mm (eccentric bushing diameter 11 mm) are quenched and hardened.
