Stainless steel thrust ball bearings detail

435 Published by admin Mar 02,2022

The stainless steel thrust ball bearings are installed in the thrust bearing bearing of the front bearing seat, and its function is to bear the axial thrust of the rotor and determine and maintain the correct axial position of the rotor.
Along the horizontal split bearing shell, solid even on, between the second half of the bolts and a taper pin positioning, bearing shell in a former and the stainless steel thrust ball bearings of the bearing pedestal between shell and support with the dowel had to prevent the shell axial rotation.

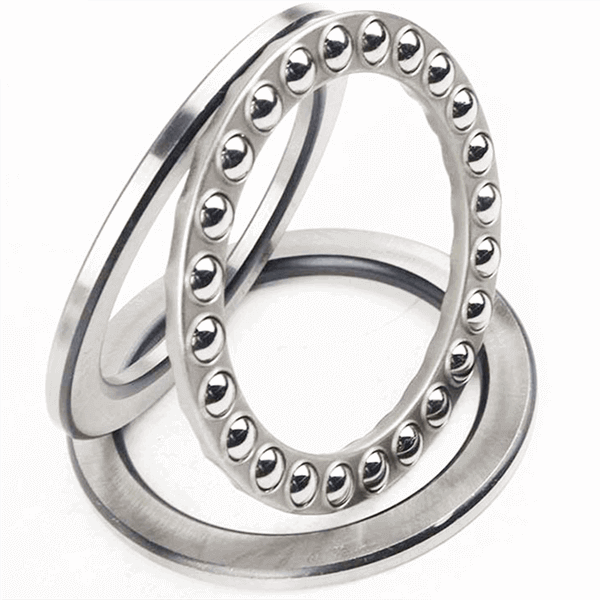

stainless steel thrust ball bearings
Each stainless steel thrust ball bearings have two groups of thrust rings, and each group has eight fan-shaped thrust tiles. The inner and outer arcs of the tiles are matched with the grooves of the shell so that the tiles can be positioned in the radial direction, and the tiles are positioned in the circumferential direction by the circular pillar pins.
Stainless steel thrust ball bearings are dynamic pressure bearings. To make the bearings work normally, the following conditions should be met:
1.  The lubricating oil has a viscosity;
2.  There is a certain relative velocity between moving and stationary bodies;
3.  Two surfaces in relative motion inclined to form an oil wedge;
4.  The external load is within the prescribed range;
5.  Enough oil.

stainless steel thrust ball bearings
When installing stainless steel thrust ball bearings, the verticality of shaft ring and shaft center line should be checked.The method is to fix the dial meter on the end face of the case, so that the contact head of the table rotates the bearing above the raceway of the bearing shaft ring, while observing the dial meter pointer, if the pointer swings, it indicates that the shaft ring and the shaft center line are not vertical.
If you need stainless steel thrust ball bearings or need any other bearings, please feel free to contact me to get more detail!
