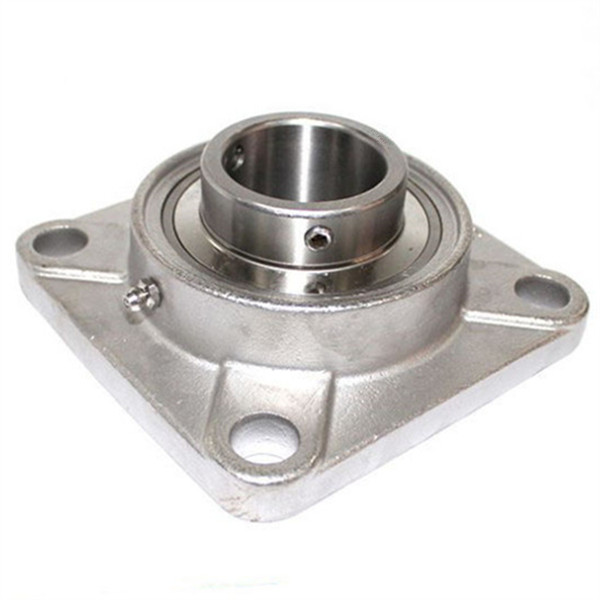

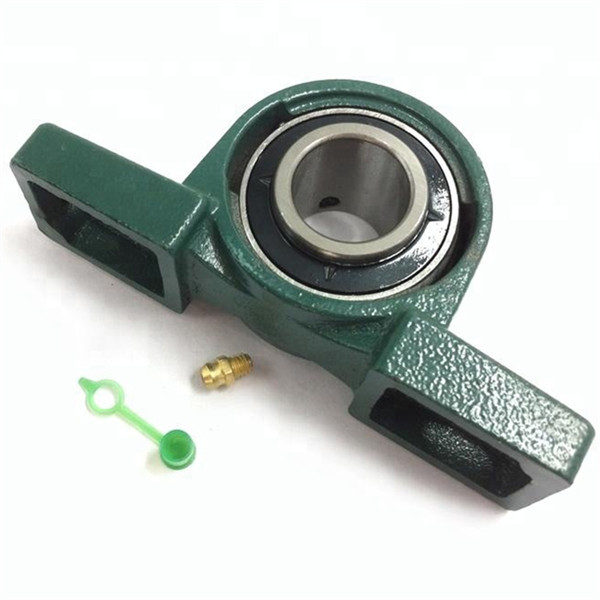

Steel pillow block bearings seat is a kind of large and oversize bearing seat which can accept comprehensive load and has special structure.Where there is a bearing, there must be a support point. The inner support point of the steel pillow block bearings is the shaft, and the outer support is the bearing seat.
How to assemble steel pillow block bearings?
Press fit method
Can use first press the steel pillow block bearings pressure equipment on the shaft, then install the shaft and bearing together into the bearing hole, when installation should pay attention to the bearing inner ring on the end face of a root mat made of soft metal casing assembly, and assembly of casing diameter than the diameter of the shaft neck slants big, and outside diameter should be smaller than the bearing inner ring guard.
The steel pillow block bearings outer ring should be closely matched with the bearing seat hole. If the inner ring is loose with the shaft, the bearing can be pressed into the bearing seat hole first. At this time, it should be noted that the outer diameter of the sleeve assembly should be smaller than the seat hole diameter.If the bearing ring is closely matched with the shaft and the seat hole, the inner ring and the outer ring should be pressed into the shaft and the seat hole at the same time.
Heating fit method
This is a commonly used installation method of less effort, is the use of thermal expansion will be tight fit into loose fit installation method.First of all, the steel pillow block bearings or the ring of separable bearing should be put into the oil tank for uniform heating. The temperature range is generally 80-100 ℃. After heating, it should be taken out from the oil tank and installed on the shaft as soon as possible.
