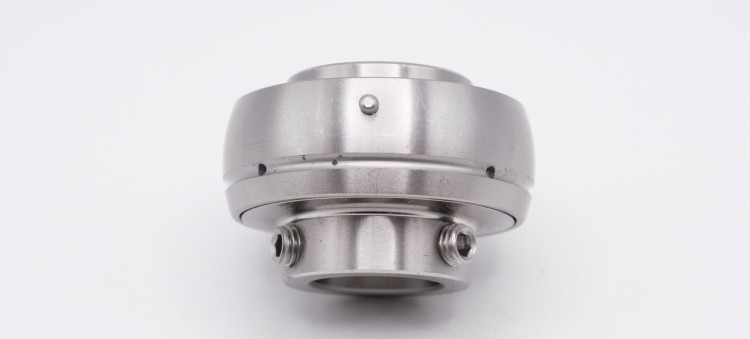

SUC207 20 is a Complete Stainless Steel Set Screw Insert Ball Bearing with Lubricating Groove Access and is pre-lubricated with Grease allowing for use upon delivery. Our SUC207 20 Stainless Steel Insert Ball Bearings have low noise and vibrations, lower friction torque and a high precision rotation. This bearing also features two set screws found on the extended inner ring which can be tightened onto a shaft. The SUC200 Series Stainless-Steel Insert Ball Bearings have a wide range of applications that involve functions in low and high temperature environments and functions in corrosive environments involving maritime climate, sea water, river water, distilled water, and in sparse nitric acid. Applications / Industries SUC207 20 Insert Ball bearings are used in a range of applications from Agricultural Machinery, Conveying Equipment, Packaging, Shaft Supports, Food Processing, Grinding and Mixing Equipment, Textile Machinery, Material Handling, ATV, UTV, Off Roading, and in the Printing Industry.
Stainless steel bearing suc207 20 material classification
| 440C stainless steel suc207 20 | 1. Vacuum quenching and tempering treatment, the cage and seal ring skeleton material is AISI304 stainless steel (domestic grade: OCr18Ni9). 2. Compared with ordinary bearing steel, stainless steel bearings have stronger rust and corrosion resistance. Select appropriate lubricants, dust covers, etc., and can be used in an environment of -60℃~+300℃. 3. Stainless steel deep groove ball bearings can resist corrosion caused by moisture and several other media. This type of single-row deep groove ball bearing has a very deep bearing raceway groove like the standard deep groove ball bearing made of carbon chromium (rolling bearing) steel, and the fit between the bearing raceway and the ball is extremely high. 4. Stainless steel bearings are widely used in food processing, medical equipment, and pharmaceutical machinery due to their high mechanical strength and large load capacity. |
| 420 stainless steel suc207 20 | 1. 420 stainless steel, 420 stainless steel is 420 "tool grade" martensitic steel, similar to Brinell high chromium steel, the earliest stainless steel. 2. 420 has certain wear resistance and corrosion resistance, high hardness, and its price is the lowest among stainless steel balls, suitable for working environments with ordinary requirements for stainless steel. 3. 420 stainless steel is suitable for various precision machinery, bearings, electrical, equipment, instruments, meters, transportation vehicles, household appliances, etc. It is mostly used to manufacture parts that are resistant to corrosion by the atmosphere, water vapor, water and oxidizing acids. |
| 304 stainless steel suc207 20 | 1. Compared with high carbon chromium martensitic stainless steel (such as 440C, 420, etc.), austenitic stainless steel has better corrosion resistance and anti-magnetic properties. 2. Austenitic stainless steel bearings are made of AISI SUS316L (316) or SUS304 materials (including inner and outer rings, balls, and cages). 3. Because austenitic stainless steel cannot be hardened as a whole, this bearing is not suitable for large loads and high speeds. |
| 316, 316L stainless steel suc207 20 | 1. Good corrosion resistance. Ordinary stainless steel cannot resist corrosion and will be corroded in acid and alkali environments, while 304, 316, and 316L stainless steel can be used in stronger environments. 2. 316 will not rust under strong acid and alkali corrosion and is non-magnetic. Generally, 440 stainless steel bearings are very magnetic and can be sucked up by magnets, but 304, 316, and 316L will not, especially 316 material can be completely non-magnetic. 3. The only difference between 316 and 316L stainless steel bearings is that 316L can be in seawater for a long time without rusting or corroding. |
There are several types of stainless steel bearing materials, and corresponding materials can be used for different actual working conditions of bearings. However, different materials have different cost prices and processing technologies, so the final prices are different. Of course, if the requirements are high, the actual working conditions are complex, and the price needs to be customized with drawings, the price will be high. Our stainless steel bearing manufacturer will quote according to the actual working conditions of the customer. We have a dedicated person online 24 hours a day. If you urgently need an actual quote for ceramic bearings, you can contact our person in charge.
