We are reliable tapered roller bearing distributor

259 Published by admin Jun 28,2023

A reliable tapered roller bearing distributor will share some knowledge of this type to you.Tapered roller bearings belong to separate type bearings, and both the inner and outer rings of the bearings have tapered raceways. This type of bearing is divided into different structural types based on the number of rows of installed rollers, such as single row, double row, and four row tapered roller bearings.

Tapered roller bearing distributor provide single row.It has an outer ring, whose inner ring and a set of tapered rollers are enclosed by a basket shaped cage as an inner ring component. According to the ISO size standard for the shape of tapered roller bearings, any standard model of tapered roller bearing outer ring or inner ring component should be able to achieve international interchangeability with the same model of outer ring or inner ring component. Usually, the cone angle of the outer race of a single row tapered roller bearing is between 10 ° and 19 °, and it can withstand both axial and radial loads simultaneously. The larger the cone angle, the greater the ability to withstand axial loads. A bearing with a large cone angle, with a trailing code B and a cone angle between 25 ° and 29 °, can withstand large axial loads. In addition, the clearance of single row tapered roller bearings can be adjusted during installation.

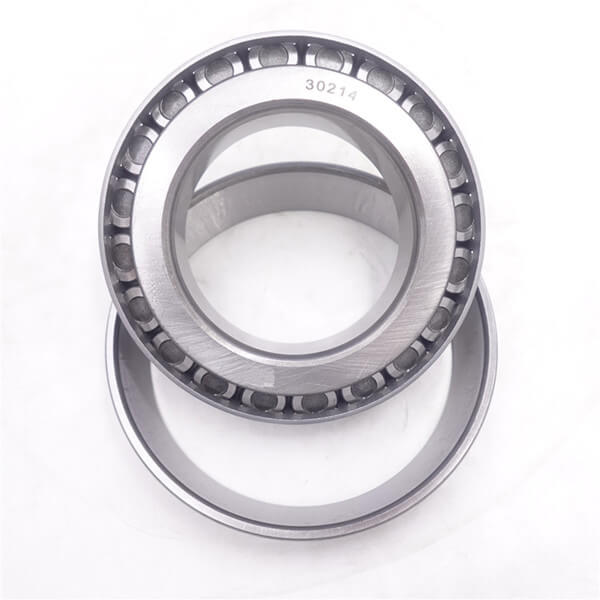

tapered roller bearing distributor metric

Tapered roller bearing distributor provide Double row tapered roller bearings, whose outer ring (or inner ring) is a whole. The small end faces of the two inner rings (or outer rings) are similar, with a spacer ring in the middle. The clearance is adjusted by the thickness of the spacer ring, or the pre interference of the double row tapered roller bearing can be adjusted by the thickness of the spacer ring.

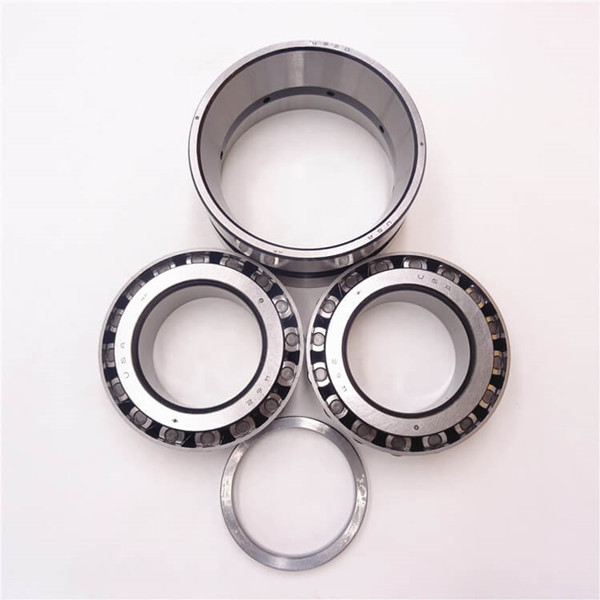

tapered roller bearing distributor double

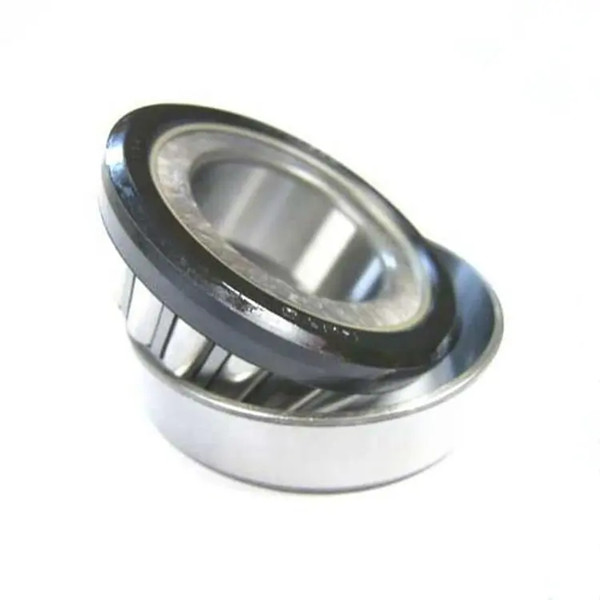

A new type of sealing structure combining sealing and dust prevention improves the sealing effect and sealing performance. Compared with open structure bearings, multi sealed dou sealed tapered roller bearing distributor ble and four row tapered roller bearings have a 20% to 40% longer lifespan; Reduce lubricant consumption by 80%.
