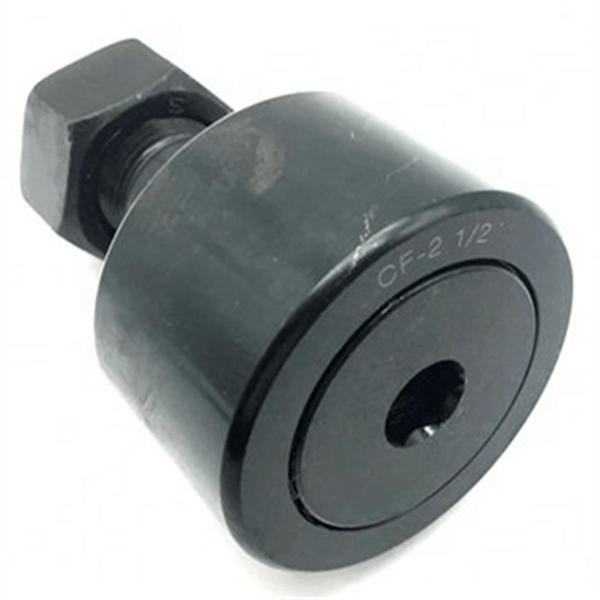

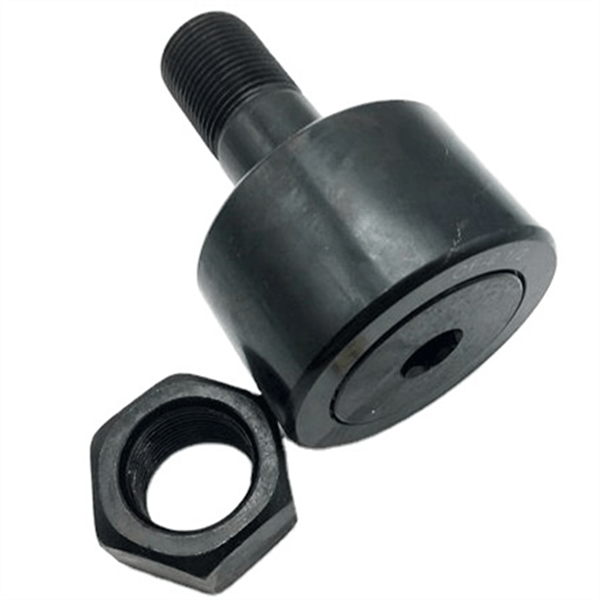

Threaded track rollers is full loaded cylindrical roller bearing with thicker outer ring wall

The outer ring of threaded track rollers bearing is full loaded cylindrical roller bearing with thicker outer ring wall. The outer diameter surface of roller bearing has cylindrical shape and arc shape, which can be designed to match the raceway surface according to the use situation.With this outer ring, the roller can roll directly on the raceway, and can withstand heavier load and impact load.
The threaded track rollers bearing is of sealed structure and filled with grease, providing long-term effective lubrication, and the user can avoid lubrication.For bad working conditions can be designed to add grease channel, improve the service life of the threaded track rollers bearing.Improper way can also cause roller bearing heating.
1) the main roller on threaded track rollers

The main roller is the most important carrier of a set of composite rollers, mainly bearing vertical load and impact load, with strong impact resistance, abrasion resistance and corrosion resistance.
2) side rollers on threaded track rollers
The threaded track rollers is the second carrier in a set of composite rollers, which mainly bears horizontal load and also has strong impact resistance, abrasion resistance and corrosion resistance.
3) the shaft head on threaded track rollers
The shaft head is used as the joint part of the composite roller and the machine and equipment. Generally, the shaft head is designed to be chamfered for easy installation. The shaft head can be directly welded to the equipment.
4) plate on threaded track rollers

The cover plate is an important part of fixing the side roller mounted inside the shaft head and the main roller outside the shaft head together with nuts and thread glue at the end of the shaft head.
If you need threaded track rollers or need any other bearings, please also contact me!
