Thrust bearing types introduction and function

Thrust bearing is a special bearing used to bear axial force, that is, a bearing with parallel axis. Thrust bearing is also called thrust bearing.

one of the thrust bearing types:thrust ball bearing is a separate bearing, and the shaft ring and seat ring can be separated from the assembly of cage and steel ball. The shaft ring is a ring matched with the shaft, the seat ring is a ring matched with the bearing seat hole, and there is a gap between the shaft and the shaft; Thrust ball bearings can only bear axial loads.

Thrust bearing types :single row thrust ball bearing can only bear axial load in one direction,

Thrust bearing types :double row thrust ball bearing can bear axial load in two directions;

The thrust ball bearing can not limit the radial displacement of the shaft, and the limit speed is very low.

The unidirectional thrust ball bearing can limit the axial displacement of the shaft and the shell in one direction,

Double row thrust ball bearing can limit axial displacement in two directions.

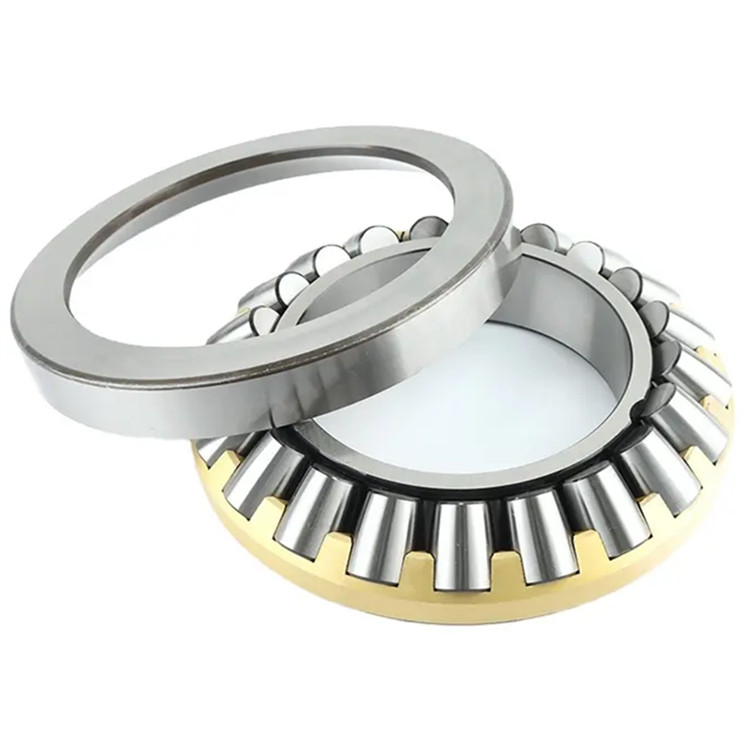

29000 thrust bearing types is asymmetric spherical roller, which can reduce the relative sliding between roller and raceway in work, and the roller is long, large in diameter, large in number and high in load capacity. Oil lubrication is usually used, and grease lubrication can be used in some low-speed cases. In the design and selection, priority should be given to selection;

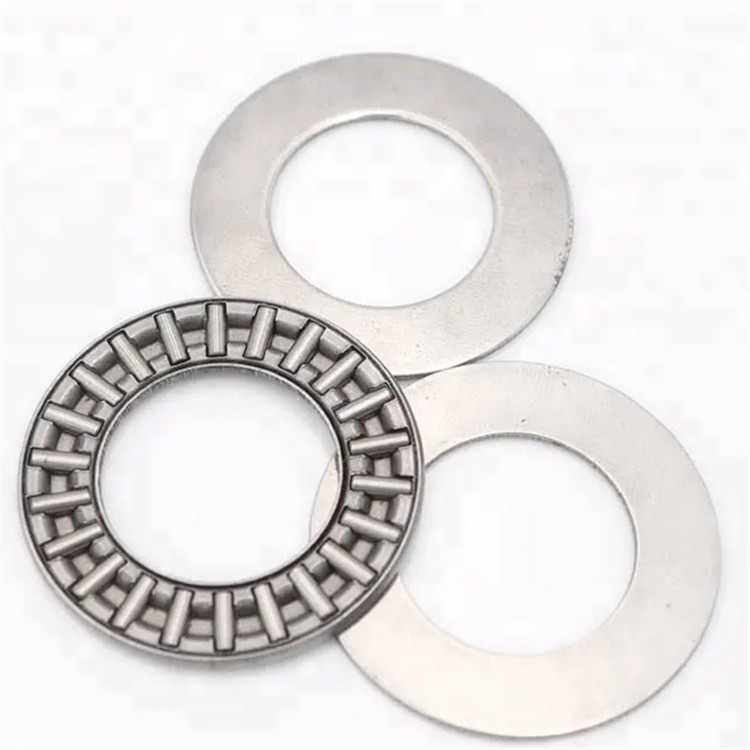

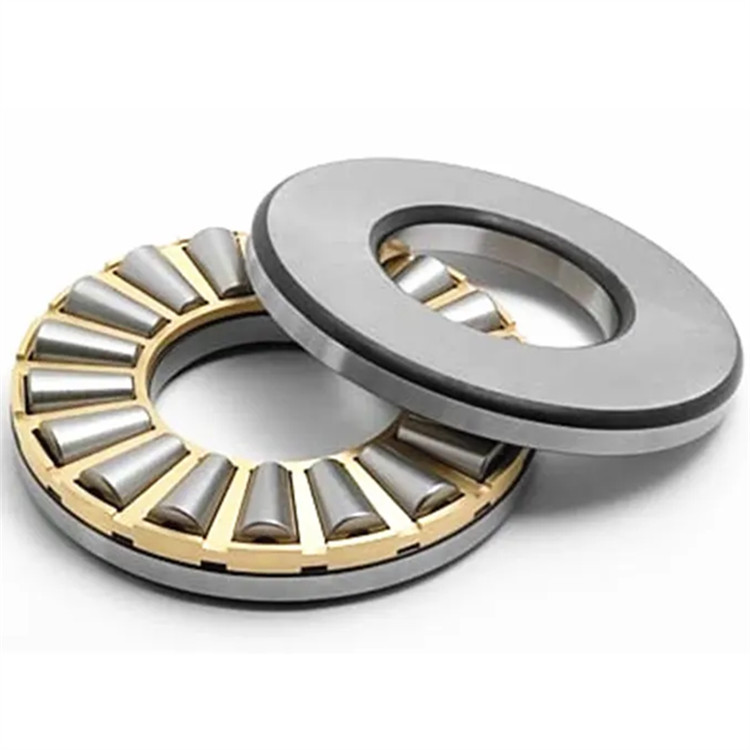

Thrust bearing types:80000 cylindrical roller thrust bearing , thrust bearing types:90000 thrust tapered roller bearing and thrust bearing types AXK thrust needle roller bearing can bear unidirectional axial load, which has much greater axial load capacity than thrust ball bearing, and is rigid and occupies less axial space.

Thrust bearing types:thrust cylindrical roller bearing and thrust needle roller bearing are suitable for low speed occasions, and the speed of thrust tapered roller bearing is slightly higher than that of thrust cylindrical roller bearing.

Application classification

Thrust bearing types are divided into thrust ball bearings and thrust roller bearings.

Thrust ball bearings can be divided into thrust ball bearings and thrust angular contact ball bearings. The raceway ring which is composed of a raceway washer, a ball and a cage assembly and matched with the shaft is called a shaft ring, and the raceway ring which is matched with the shell is called a seat ring. Two-way bearings match the middle ring with the shaft. One-way bearings can bear unidirectional axial loads, while two-way bearings can bear bidirectional axial loads. Bearings with spherical mounting surfaces of the seat rings have self-aligning performance, which can reduce the influence of installation errors. These bearings are mainly used in automobile steering mechanisms and machine tool spindles.

Thrust roller bearings are divided into thrust cylindrical roller bearings, thrust self-aligning roller bearings, thrust tapered roller bearings and thrust needle roller bearings. Thrust cylindrical roller bearings are mainly used in oil rigs and steel-making machinery. Thrust self-aligning roller bearings are mainly used in hydro-generators, vertical motors, ship propeller shafts, tower cranes, extruders, etc. Thrust tapered roller bearings are mainly used in one direction: crane hooks, rotating rings of oil rigs. Two directions: roll necks of steel mills.
