Stainless Steel Pillow Block Bearing ucf 205

705 Published by admin Oct 21,2020

stainless steel Pillow Block Bearing ucf 205 is the outer diameter of the spherical outer ring with double sealing device, widen the inner ring of deep groove ball bearings, outer spherical ball bearing and all kinds of structure of casting bearing combination or stamping steel housing is set-contained bearing spherical ball bearing. Arrange ushering bearing structure is compact, light weight, small volume, has a good automatic self-aligning performance, to allow self-aligning Angle up to + 10.With the corresponding size is equipped with split compared bearing self-aligning ball bearings, have larger bearing capacity and high speed limits. Related to host a low machining accuracy, bearing inner hole and shaft are usually clearance fit, can be directly with the top silk, eccentric sleeve or set set of fastening and optical axis at any position, convenient installation, especially suitable for the supporting shaft, long axis, stiffness used small deformation of the axis of the host.

Stainless Bearing Unit ucf 205 has some advantages, Such as automatic adjustment, Repeated lubrication, Dustproof and convenience for fixing and disassembly. It is widely used in various mechanical equipments and conveying device. ucf 205 stainless plummer blocks are specially designed to meet particular engineering demand for food. Medical and chemical industry. Which have some excellence such as cleanness, Anti-corrosion etc. ucf 205 Bearing housing is made of AISIS304 and the insert bearings are made of AISI SUS440C, Specially AISI SUS316 also could be used.

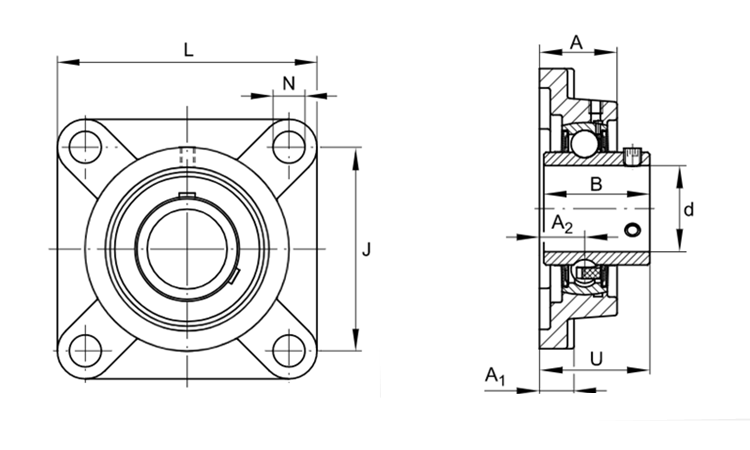

Stainless Steel Pillow block bearing UCF 205 drawing:

ucf 205 bearing
d 25  mm
L 95  mm
U 35.8  mm
A 27  mm
A1 14  mm
A2 16  mm
B 34,1  mm
J 70  mm
N 12  mm
m 0,85  kg

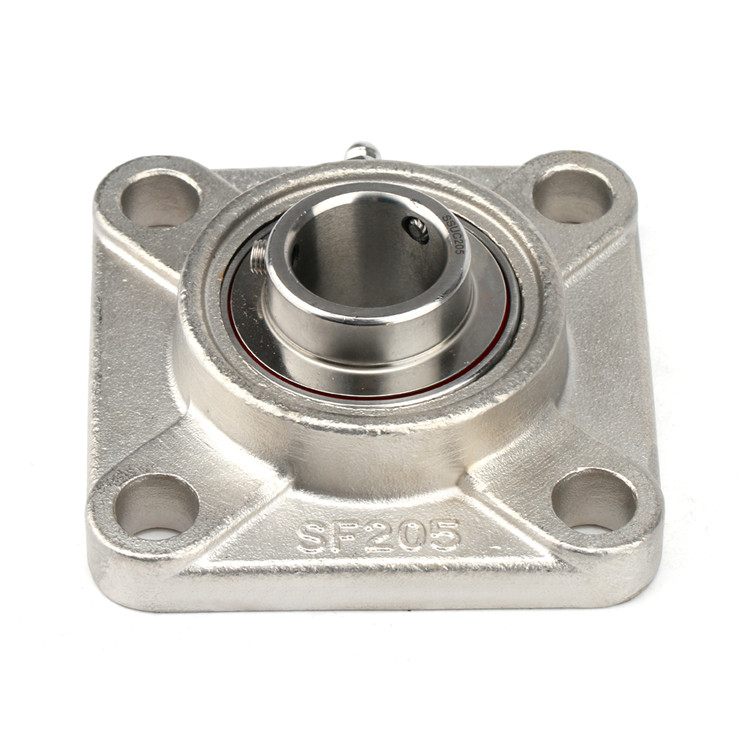

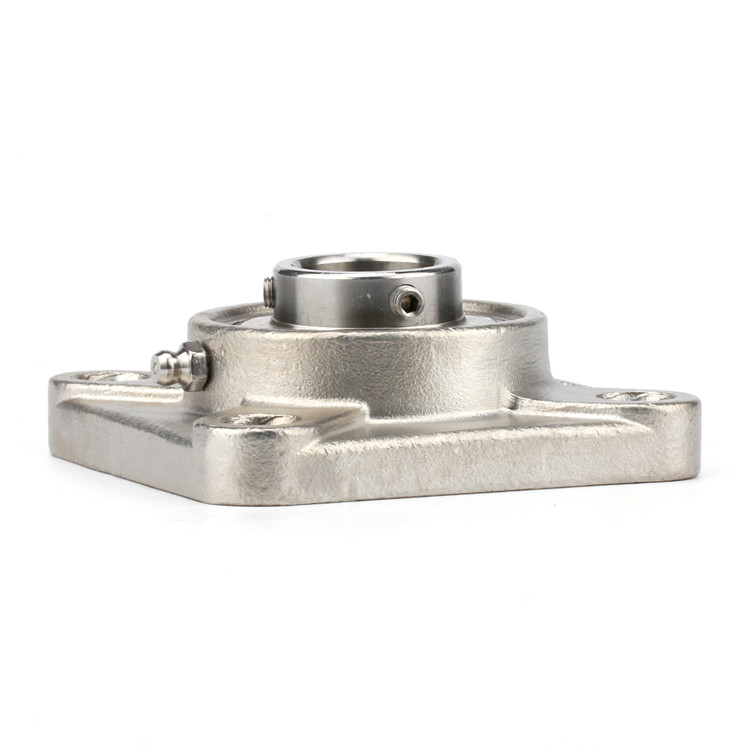

Stainless Steel Pillow block bearing UCF 205 picture:

SSUCF205 ucf pillow block bearing

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
