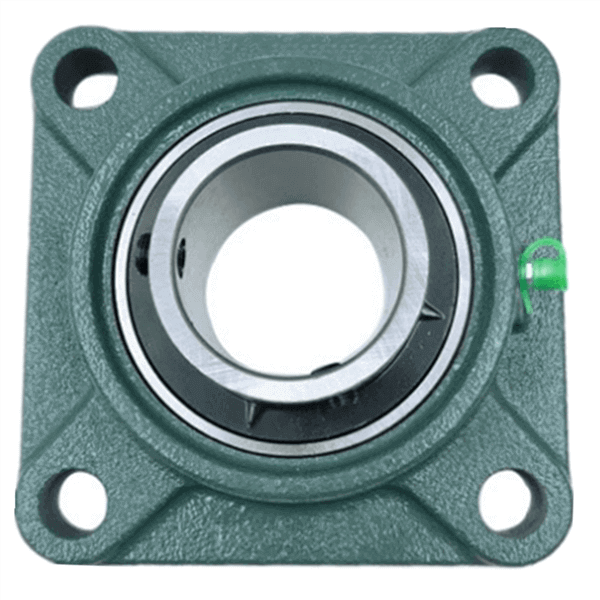

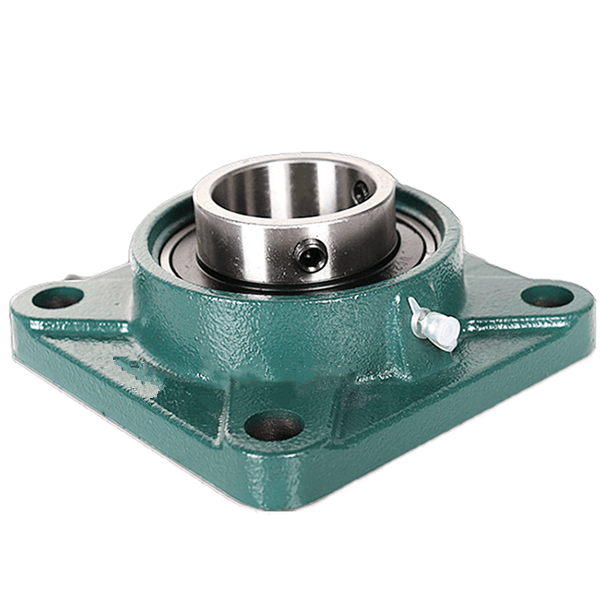

Ucf 209 bearing is a kind of outer spherical ball bearing with seat and weighs 1.72kg.
Ucf 209 bearing dimension parameters
Model: ucf 209
a:188mm
e:148mm
b:108mm
Z: 52.2 mm
i:22mm
Weight: 1.72 kg
Ucf 209 bearings application:
Outer spherical bearings are preferred in situations where simple equipment and components are required, such as in agricultural machinery, transportation systems or construction machinery.
These ucf 209 bearings can be used for: sieving equipment, enamel reaction kettle, excavator, electrostatic spraying machine, ironing machine, binding machine, explosion-proof pump, bag making machine, injection molding machine accessories, pharmaceutical packaging machinery, weaving machine, blown film machine, plant protection machinery, boring machine, wire stripping machine, drum scraper drying machine, tower crane, cold water machine, and so on.
The installation for ucf 209 bearing:
1.Before mounting the ucf 209 bearing on the shaft, it is necessary to remove the fixed pin of the bearing coat, polish the surface of the shaft journal and coat the shaft journal with oil to prevent rust and lubricate it.
2. Lubricate the mating surfaces of the ucf bearing housing and the bearing and load the bearing into the housing.Then the assembled bearing and bearing housing together on the shaft.
2.Do not tighten the bolts to fix the ucf 209 bearing seat, but let the bearing coat rotate in the bearing seat.Also install the other end bearing and seat on the same shaft, rotate the shaft several times, so that the bearing itself is automatically aligned.
3.Install eccentric sleeve.First put the eccentric sleeve on the eccentric step of the inner sleeve of the bearing and tighten it in the direction of rotation of the shaft by hand.The small iron bar is then inserted or pushed against the counterbore in the eccentric sleeve.
If you need ucf 209 bearing or need any other bearings, please also contact me!
