High quality UCP208 pillow block bearing details

577 Published by admin Oct 19,2020

Pillow Block Bearing is combing roller bearing and bearing seat, a bearing units. Most particularly the spherical bearing are made spherical outer diameter, and the imported bearing with spherical inner hole to install together, variety structure, good versatility and interchangeability.UCP208 bearings are also known as outer spherical bearings with vertical seat top thread. These types of bearings are the most classic and most commonly used form of outer spherical bearings with seat. They are suitable for all transmission devices and machinery where the shaft is parallel to the mounting surface.

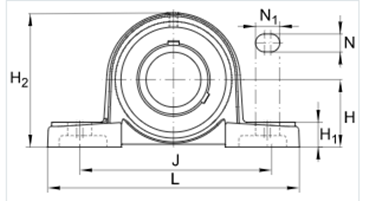

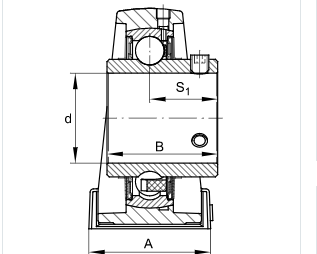

UCP208 drawing and size:

Pillow block bearing ucp208 d 40  mm
L 184  mm
H2 98  mm
A 54  mm
B 49.2  mm
H 49.2  mm
H1 18  mm
UCP208 bearing J 137  mm
N 17  mm
N1 21  mm
S1 30,2  mm
m 1,84  kg
Bearing housing model P208
Insert ball bearing model UC208

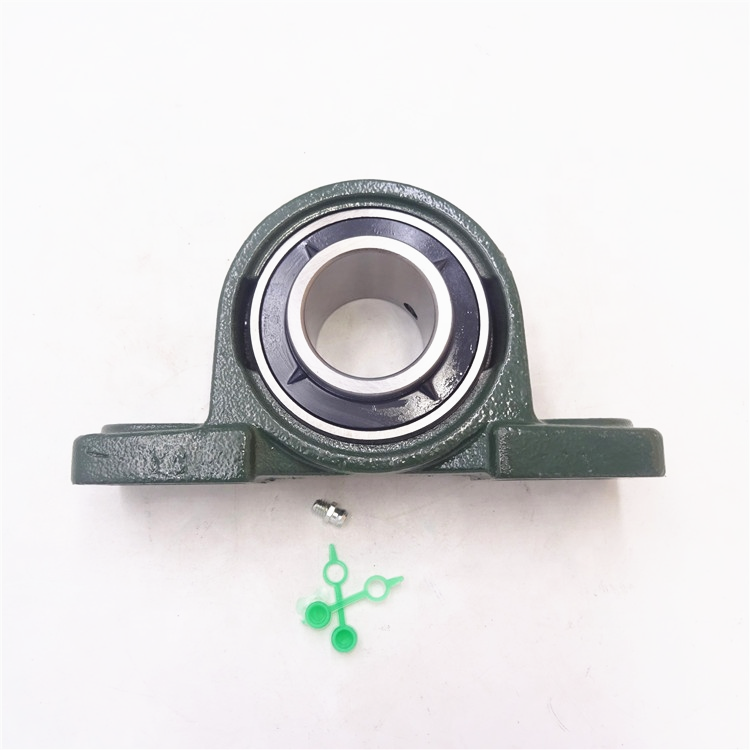

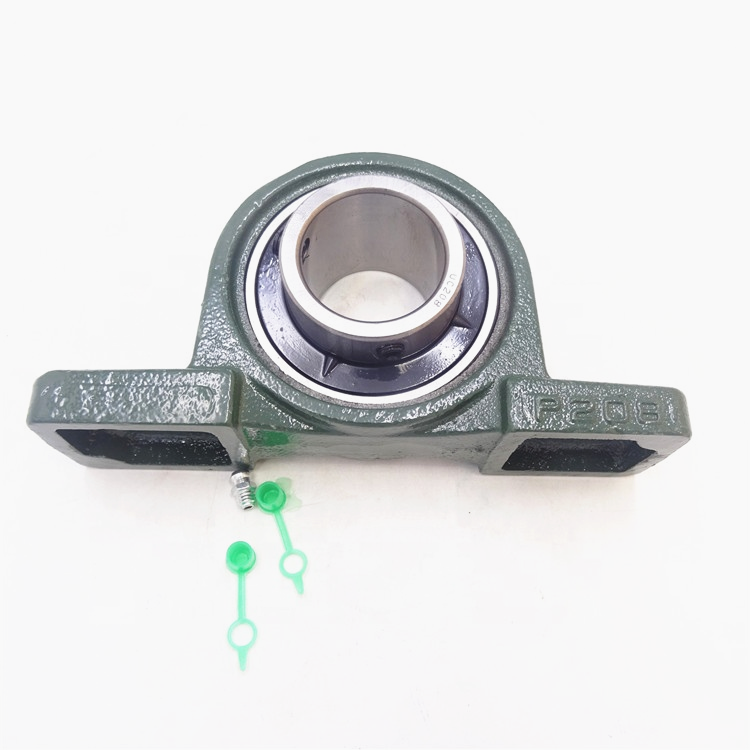

UCP208 picture:

UCP208 bearing UCP208 PILLOW BLOCK BEARING

UCP208 bearing structure is compact, easy to loading and unloading, seal is perfect, suitable for simple support, often used in mining, metallurgy, agriculture, chemical, textile, printing and dyeing, conveying machinery, etc.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
